AnexTEK moboDA G610

add to favorites

details:

» home » AnexTEK » AnexTEK moboDA G610

AnexTEK moboDA G610

Title:

AnexTEK moboDA G610

Brand:

AnexTEK

Manufacturer:

AnexTEK

Release-Date:

June, 2006

Dimensions-width-x-height-x-depth:

87 x 120 x 21.5 millimetres
3.4 x 4.7 x 0.8 inches

Bounding-Volume:

224.5 cubecentimetres

Mass:

220 grams (battery included)

Embedded-Operating-System:

Microsoft Windows CE .NET 4.2 Professional Edition (McKendric)

Operating-System-Kernel:

Microsoft Windows CE 4.2

CPU:

Samsung S3C2410

CPU-Clock:

266MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 58MB)

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.1` x 2.8` (53.4 x 71.2 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

Not supported

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

2100mAh

Avarege-Current:

105 mA

Estimated-Battery-Life:

20 hours

Additional-Features:

integrated 20 -channel Sirf Star III GPS reciever

Related-Page:

http://www.mobodaclub.com...

views:

5731

date added:

Dec 07, 2006

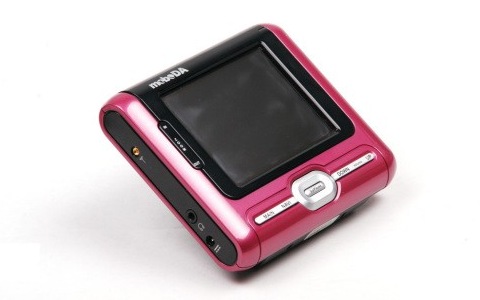

Click here to Download the AnexTEK moboDA G610 image
