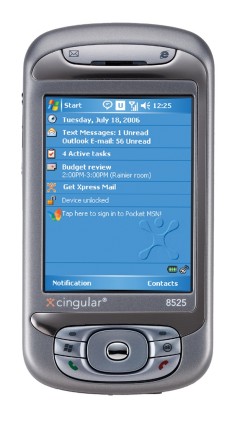

Cingular 8525 (HTC Hermes 160)

add to favorites

details:

» home » Cingular » Cingular 8525 (HTC Hermes 160)

Title:

Cingular 8525 (HTC Hermes 160)

Brand:

Cingular

Manufacturer:

High Tech Computer

Release-Date:

November, 2006

Dimensions-width-x-height-x-depth:

58 x 112.5 x 21.95 millimetres
2.3 x 4.4 x 0.9 inches

Bounding-Volume:

143.2 cubecentimetres

Mass:

176 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto) AKU 3.0

Operating-System-Kernel:

Microsoft Windows CE 5.1.342

CPU:

Samsung S3C2442

CPU-Clock:

400MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

128MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

SDIO, microSD, TransFlash

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.8` (72 millimetres)

Viewable-size:

1.7` x 2.3` (43.2 x 57.6 millimetres)

Dot-Pitch:

0.18 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

2 (stereo)

Audio-Output:

stereo

Supported-Cellular-Networks:

GSM 850MHz, GSM 900MHz, GSM 1800MHz, GSM 1900MHz, UMTS 850MHz, UMTS 1900MHz, UMTS 2100MHz

Supported-Data-Standards:

CSD, GPRS, EDGE, UMTS, HSDPA

Ring:

64-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 2.0

LAN:

Not supported

Wireless-LAN:

802.11b, 802.11g54Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

QWERTY keyboard, 41 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1350mAh

Avarege-Current:

123 mA

Estimated-Battery-Life:

11 hours

Additional-Features:

Qualcomm 6275 GSM/GPRS/EDGE/UMTS/HSDPA chipset GPRS Class 10 voice command vibrating call alert built-in antenna hands-free slide-out QWERTY keyboard backlit keyboard with backlight auto sensor macro mode flash
