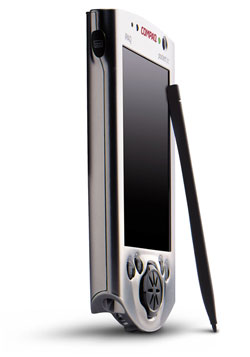

Compaq iPAQ H3660 / H3670

Title:

Compaq iPAQ H3660 / H3670

Brand:

Compaq

Manufacturer:

High Tech Computer

Release-Date:

March, 2001

Dimensions-width-x-height-x-depth:

83.5 x 130 x 15.7 millimetres
3.3 x 5.1 x 0.6 inches

Bounding-Volume:

170.4 cubecentimetres

Mass:

174 grams (battery included)

Embedded-Operating-System:

Microsoft Pocket PC 2000 (Rapier)

Operating-System-Kernel:

Microsoft Windows CE 3.00

CPU:

Intel StrongARM SA-1110

CPU-Clock:

206MHz

Databus-Width:

32bit

CPU-Core:

Intel SA-1

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

16MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

Display:

color reflective TFT

Color-Depth:

12bit/pixel (4096 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.8` (97 millimetres)

Viewable-size:

2.3` x 3.1` (58.2 x 77.6 millimetres)

Dot-Pitch:

0.2425 millimetre/pixel

Graphical-Controller:

Intel StrongARM grafikus vezérlõ

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.1115200bit/s (SIR/CIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, built-in

Battery-Capacity:

950mAh

Avarege-Current:

136 mA

Estimated-Battery-Life:

7 hours

Additional-Features:

Related-Page:

http://h18007.www1.hp.com/support/files/...
