CyberBank PC-EPhone

add to favorites

details:

» home » CyberBank » CyberBank PC-EPhone

CyberBank PC-EPhone

Title:

CyberBank PC-EPhone

Brand:

CyberBank

Manufacturer:

Release-Date:

March, 2001

Dimensions-width-x-height-x-depth:

103 x 127 x 23 millimetres
4.1 x 5 x 0.9 inches

Bounding-Volume:

300.9 cubecentimetres

Mass:

303 grams (battery included)

Embedded-Operating-System:

Microsoft Handheld PC 2000 (Galileo)

Operating-System-Kernel:

Microsoft Windows CE 3.0

CPU:

Intel StrongARM SA-1110

CPU-Clock:

206MHz

Databus-Width:

32bit

CPU-Core:

Intel SA-1

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

32MB

RAM-type:

SDRAM

RAM-capacity:

16MB

Expansion-Slots:

CF I., CF II.

Display:

color transflective TFT

Color-Depth:

8bit/pixel (256 scales)

Resolution:

640 x 480 (307200 pixel)

Diagonal:

4` (102 millimetres)

Viewable-size:

3.2` x 2.4` (81.6 x 61.2 millimetres)

Dot-Pitch:

0.1275 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

CMDA 800MHz

Supported-Data-Standards:

cdmaOne

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 host/client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.1115200bit/s (SIR/CIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

2100mAh

Avarege-Current:

162 mA

Estimated-Battery-Life:

13 hours

Additional-Features:

Related-Page:

http://www.cb.co.kr/products/standalone_...

views:

5862

date added:

Dec 06, 2006

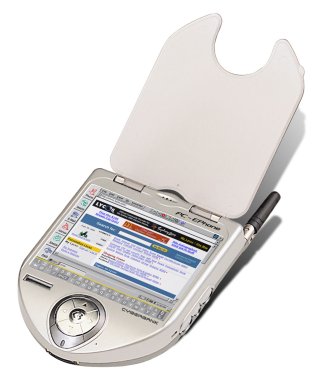

Click here to Download the CyberBank PC-EPhone image
