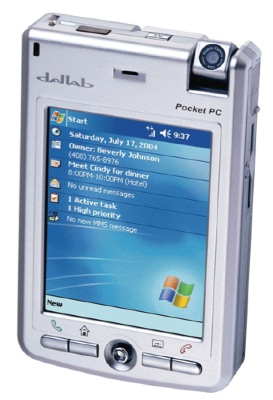

Dallab DP900

add to favorites

details:

» home » Dallab » Dallab DP900

Title:

Dallab DP900

Brand:

Dallab

Manufacturer:

Release-Date:

January, 2004

Dimensions-width-x-height-x-depth:

65 x 100 x 18.3 millimetres
2.6 x 3.9 x 0.7 inches

Bounding-Volume:

119 cubecentimetres

Mass:

148 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 for Pocket PC Phone Edition (Ozone)

Operating-System-Kernel:

Microsoft Windows CE 4.20.0

CPU:

Intel XScale PXA255

CPU-Clock:

300MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

18bit/pixel (262144 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3` (76 millimetres)

Viewable-size:

1.8` x 2.4` (45.6 x 60.8 millimetres)

Dot-Pitch:

0.19 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

1-chord melody (monophonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1100mAh

Avarege-Current:

157 mA

Estimated-Battery-Life:

7 hours

Additional-Features:

GPRS Class 10 built-in antenna vibrating alert hands-free 180 degrees rotatable imager sensor

Related-Page:

http://www.dallab.com/...
