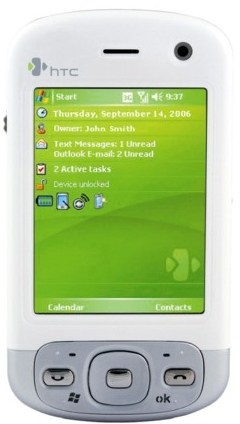

HTC P3600 (HTC Trinity 100)

add to favorites

details:

» home » HTC » HTC P3600 (HTC Trinity 100)

Title:

HTC P3600 (HTC Trinity 100)

Brand:

HTC

Manufacturer:

High Tech Computer

Release-Date:

September, 2006

Dimensions-width-x-height-x-depth:

58.2 x 108 x 18.4 millimetres
2.3 x 4.3 x 0.7 inches

Bounding-Volume:

115.7 cubecentimetres

Mass:

143 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto) AKU 3.0

Operating-System-Kernel:

Microsoft Windows CE 5.1.342

CPU:

Samsung S3C2442

CPU-Clock:

400MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

128MB, including 61.02MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 49MB)

Expansion-Slots:

miniSD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.8` (72 millimetres)

Viewable-size:

1.7` x 2.3` (43.2 x 57.6 millimetres)

Dot-Pitch:

0.18 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

stereo

Supported-Cellular-Networks:

GSM 850MHz, GSM 900MHz, GSM 1800MHz, GSM 1900MHz, UMTS 850MHz, UMTS 1900MHz, UMTS 2100MHz

Supported-Data-Standards:

CSD, GPRS, EDGE, UMTS, HSDPA

Ring:

64-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 2.0

LAN:

Not supported

Wireless-LAN:

802.11b, 802.11g54Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1500mAh

Avarege-Current:

125 mA

Estimated-Battery-Life:

12 hours

Additional-Features:

GPRS Class 10 64 tone polyphonic (MIDI) ringtone voice command vibrating call alert built-in antenna hands-free secondary VGA camera mini-USB connector pre installed AKU 3.0 software kit
