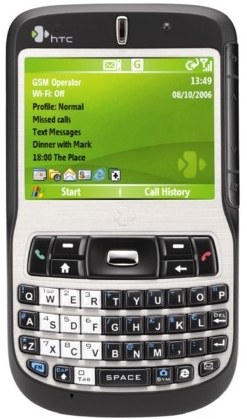

HTC S620 (HTC Excalibur 100)

add to favorites

details:

» home » HTC » HTC S620 (HTC Excalibur 100)

Title:

HTC S620 (HTC Excalibur 100)

Brand:

HTC

Manufacturer:

High Tech Computer

Release-Date:

October, 2006

Dimensions-width-x-height-x-depth:

62.5 x 111.5 x 12.8 millimetres
2.5 x 4.4 x 0.5 inches

Bounding-Volume:

89.2 cubecentimetres

Mass:

119 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Smartphone AKU 3.0

Operating-System-Kernel:

Microsoft Windows CE 5.1.342 Build 15097.3.0.1

CPU:

Texas Instruments OMAP 850

CPU-Clock:

201MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

128MB, including 76.53MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 43.87MB)

Expansion-Slots:

microSD, TransFlash, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

320 x 240 (76800 pixel)

Diagonal:

2.4` (62.2 millimetres)

Viewable-size:

2` x 1.5` (49.76 x 37.32 millimetres)

Dot-Pitch:

0.1555 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

stereo

Supported-Cellular-Networks:

GSM 850MHz, GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS, EDGE

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 2.0

LAN:

Not supported

Wireless-LAN:

802.11b, 802.11g54Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

QWERTY keyboard, 37 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

960mAh

Avarege-Current:

87 mA

Estimated-Battery-Life:

11 hours

Additional-Features:

GPRS Class 10 polyphonic (MIDI) ringtone hands-free voice command built-in antenna vibrating call alert mini-USB connector HTC JOGGR pre installed AKU 3.0

Related-Page:

http://www.europe.htc.com...
