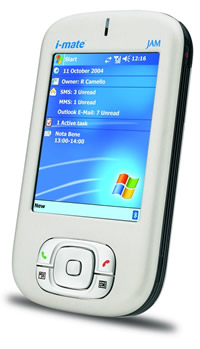

I-Mate JAM (HTC Magician)

add to favorites

details:

» home » I-Mate » I-Mate JAM (HTC Magician)

Title:

I-Mate JAM (HTC Magician)

Brand:

I-Mate

Manufacturer:

High Tech Computer

Release-Date:

December, 2004

Dimensions-width-x-height-x-depth:

58.2 x 107.7 x 18.1 millimetres
2.3 x 4.2 x 0.7 inches

Bounding-Volume:

113.5 cubecentimetres

Mass:

155 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 Second Edition for Pocket PC Phone Edition (Ozone Update)

Operating-System-Kernel:

Microsoft Windows CE 4.21.1088

CPU:

Intel XScale PXA272

CPU-Clock:

416MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

64MB, including 7.6MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 57MB)

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.8` (71.8 millimetres)

Viewable-size:

1.7` x 2.3` (43.08 x 57.44 millimetres)

Dot-Pitch:

0.1795 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1200mAh

Avarege-Current:

120 mA

Estimated-Battery-Life:

10 hours

Additional-Features:

GPRS Class 10 40 tone polyphonic (MIDI) ringtone hands-free built-in antenna vibrating call alert mini-USB connector
