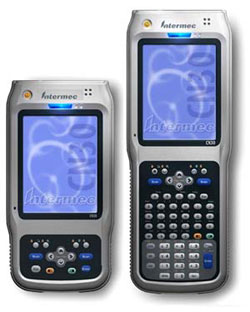

Intermec CN30

add to favorites

details:

» home » Intermec » Intermec CN30

Title:

Intermec CN30

Brand:

Intermec

Manufacturer:

Intermec

Release-Date:

March, 2006

Dimensions-width-x-height-x-depth:

89 x 173 x 34 millimetres
3.5 x 6.8 x 1.3 inches

Bounding-Volume:

523.5 cubecentimetres

Mass:

474 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Premium Edition (Magneto)

Operating-System-Kernel:

Microsoft Windows CE 5.1.70

CPU:

Intel XScale PXA272

CPU-Clock:

520MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

480 x 640 (307200 pixel)

Diagonal:

3.8` (97 millimetres)

Viewable-size:

2.3` x 3.1` (58.2 x 77.6 millimetres)

Dot-Pitch:

0.1212 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 host/client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.1115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Ethernet, 100Mbit/s

Wireless-LAN:

802.11b, 802.11g54Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

2400mAh

Avarege-Current:

160 mA

Estimated-Battery-Life:

15 hours

Additional-Features:

dust resistant drop resistant (1.5m) water resistant (IP54) integrated laser bar code scanner attachable 56 -key keyboard
