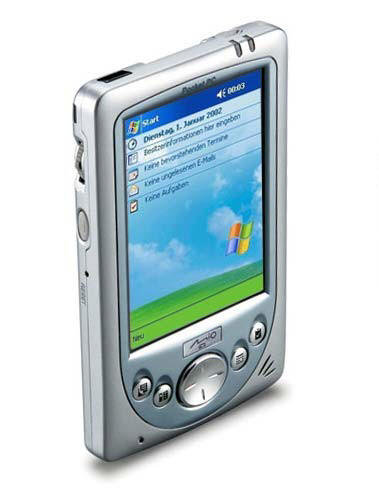

MiTAC Mio 338 Plus Digi-Walker

add to favorites

details:

» home » MiTAC » MiTAC Mio 338 Plus Digi-Walker

Title:

MiTAC Mio 338 Plus Digi-Walker

Brand:

MiTAC

Manufacturer:

MiTAC

Release-Date:

November, 2002

Dimensions-width-x-height-x-depth:

78.8 x 121.7 x 11 millimetres
3.1 x 4.8 x 0.4 inches

Bounding-Volume:

105.5 cubecentimetres

Mass:

118 grams (battery included)

Embedded-Operating-System:

Microsoft Pocket PC 2002 Premium Edition (Merlin)

Operating-System-Kernel:

Microsoft Windows CE 3.01

CPU:

Intel XScale PXA250

CPU-Clock:

200MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

64MB, including 32MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

40MB

Expansion-Slots:

MMC, SD

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.1` x 2.8` (53.4 x 71.2 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, built-in

Battery-Capacity:

900mAh

Avarege-Current:

113 mA

Estimated-Battery-Life:

8 hours

Additional-Features:

Related-Page:

http://www.justmio.com...
