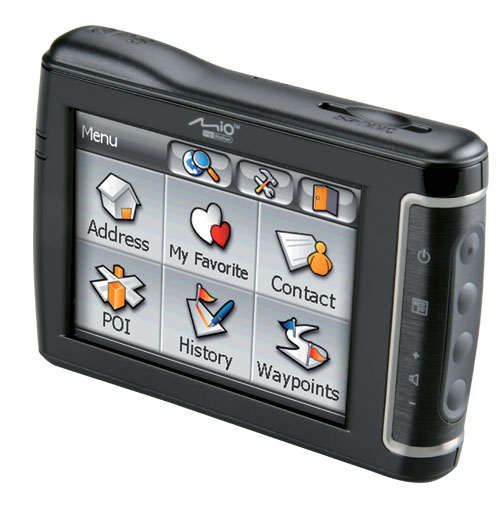

MiTAC Mio C710 Digi-Walker

add to favorites

details:

» home » MiTAC » MiTAC Mio C710 Digi-Walker

Title:

MiTAC Mio C710 Digi-Walker

Brand:

MiTAC

Manufacturer:

MiTAC

Release-Date:

May, 2006

Dimensions-width-x-height-x-depth:

110 x 77 x 20 millimetres
4.3 x 3 x 0.8 inches

Bounding-Volume:

169.4 cubecentimetres

Mass:

110 grams (battery included)

Embedded-Operating-System:

Microsoft Windows CE .NET 4.2 Core (McKendric)

Operating-System-Kernel:

Microsoft Windows CE 4.2

CPU:

Samsung S3C2440

CPU-Clock:

400MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

2048MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

320 x 240 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.8` x 2.1` (71.2 x 53.4 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

Not supported

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1200mAh

Avarege-Current:

150 mA

Estimated-Battery-Life:

8 hours

Additional-Features:

integrated 20 -channel SiRFStar III GPS reciever mini-USB connector pre installed Mio Map v3 (iGO 2006) TMC feature
