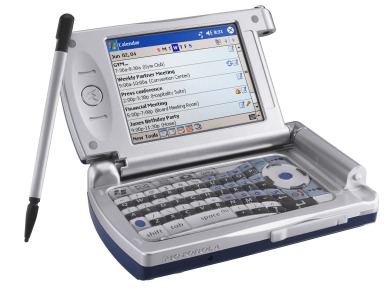

Motorola MPx

add to favorites

details:

» home » Motorola » Motorola MPx

Title:

Motorola MPx

Brand:

Motorola

Manufacturer:

Motorola Mobile Devices

Release-Date:

Never released

Dimensions-width-x-height-x-depth:

61.2 x 99.7 x 24 millimetres
2.4 x 3.9 x 0.9 inches

Bounding-Volume:

146.4 cubecentimetres

Mass:

174 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 Second Edition for Pocket PC Phone Edition (Ozone Update)

Operating-System-Kernel:

Microsoft Windows CE 4.21.1088

CPU:

Texas Instruments OMAP 1710

CPU-Clock:

200MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

16KB data cache / 32KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

48MB, including 15MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

32MB

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.8` (72 millimetres)

Viewable-size:

1.7` x 2.3` (43.2 x 57.6 millimetres)

Dot-Pitch:

0.18 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.1

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

QWERTY keyboard, 46 keys

Directional-Pad:

Battery:

Lithium-ion, removable

Battery-Capacity:

960mAh

Avarege-Current:

120 mA

Estimated-Battery-Life:

8 hours

Additional-Features:

GPRS Class 10 vibrating alert built-in antenna

Related-Page:

http://www.motorola.com...
