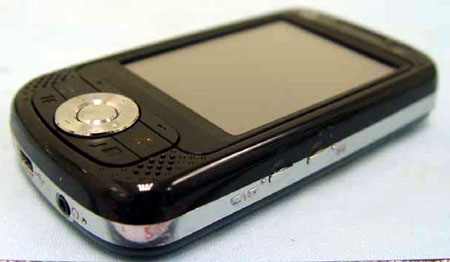

O2 XDA Apollo

add to favorites

details:

» home » O2 » O2 XDA Apollo

Title:

O2 XDA Apollo

Brand:

Manufacturer:

Quanta Computer

Release-Date:

January, 2007

Dimensions-width-x-height-x-depth:

58 x 102 x 18.5 millimetres
2.3 x 4 x 0.7 inches

Bounding-Volume:

109.4 cubecentimetres

Mass:

150 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto) AKU 3.0

Operating-System-Kernel:

Microsoft Windows CE 5.1.342

CPU:

Intel XScale PXA272

CPU-Clock:

416MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

192MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

SDIO, miniSD

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.7` (69 millimetres)

Viewable-size:

1.6` x 2.2` (41.4 x 55.2 millimetres)

Dot-Pitch:

0.1725 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

2 (stereo)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz, UMTS 2100MHz

Supported-Data-Standards:

CSD, GPRS, EDGE, UMTS

Ring:

64-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 2.0

LAN:

Not supported

Wireless-LAN:

802.11b, 802.11g54Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

Avarege-Current:

Estimated-Battery-Life:

Additional-Features:

GPRS Class 10 hands-free built-in antenna flash built-in FM radio Bluetooth stereo audio profile (A2DP) pre installed O2 Media Plus platform

Related-Page:

http://www.myxda.com...
