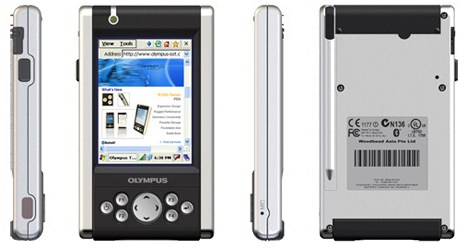

Olympus R1000 TDA

Title:

Olympus R1000 TDA

Brand:

Olympus

Manufacturer:

Release-Date:

March, 2005

Dimensions-width-x-height-x-depth:

76 x 132 x 16 millimetres
3 x 5.2 x 0.6 inches

Bounding-Volume:

160.5 cubecentimetres

Mass:

180 grams (battery included)

Embedded-Operating-System:

Microsoft Windows CE .NET 4.2 Professional Edition (McKendric)

Operating-System-Kernel:

Microsoft Windows CE 4.20

CPU:

Freescale i.MXL (MC9328MXL)

CPU-Clock:

200MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v5TEJ

ROM-capacity:

256MB

RAM-type:

SDRAM

RAM-capacity:

128MB

Expansion-Slots:

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.1` x 2.8` (53.4 x 71.2 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.1

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

4-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1500mAh

Avarege-Current:

125 mA

Estimated-Battery-Life:

12 hours

Additional-Features:

dust resistant drop resistant (1m) water resistant (IP54 II.)
