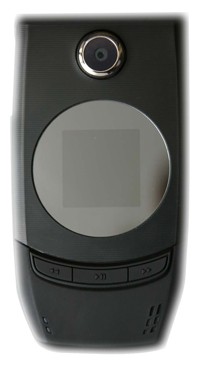

Orange SPV F600 (HTC Startrek 100)

add to favorites

details:

» home » Orange » Orange SPV F600 (HTC Startrek 100)

Title:

Orange SPV F600 (HTC Startrek 100)

Brand:

Orange

Manufacturer:

High Tech Computer

Release-Date:

November, 2006

Dimensions-width-x-height-x-depth:

51.4 x 98.5 x 15.8 millimetres
2 x 3.9 x 0.6 inches

Bounding-Volume:

80 cubecentimetres

Mass:

99 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Smartphone AKU 2.3

Operating-System-Kernel:

Microsoft Windows CE 5.1.195

CPU:

Texas Instruments OMAP 850

CPU-Clock:

195MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

microSD, TransFlash, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.2` (56 millimetres)

Viewable-size:

1.3` x 1.8` (33.6 x 44.8 millimetres)

Dot-Pitch:

0.14 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

stereo

Supported-Cellular-Networks:

GSM 850MHz, GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS, EDGE

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

alphanumeric phone keyboard, 12 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

750mAh

Avarege-Current:

75 mA

Estimated-Battery-Life:

10 hours

Additional-Features:

GPRS Class 10 dedicated multimedia buttons (3) Bluetooth stereo audio profile (A2DP)

Related-Page:

http://orange.com...

views:

2551

date added:

Dec 06, 2006
