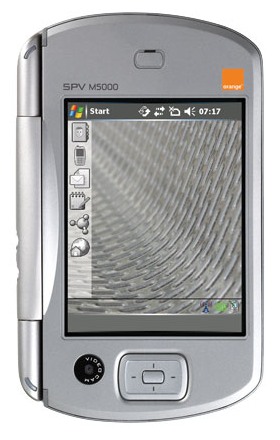

Orange SPV M5000 (HTC Universal)

add to favorites

details:

» home » Orange » Orange SPV M5000 (HTC Universal)

Title:

Orange SPV M5000 (HTC Universal)

Brand:

Orange

Manufacturer:

High Tech Computer

Release-Date:

November, 2005

Dimensions-width-x-height-x-depth:

81 x 127.7 x 25 millimetres
3.2 x 5 x 1 inches

Bounding-Volume:

258.6 cubecentimetres

Mass:

285 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto)

Operating-System-Kernel:

Microsoft Windows CE 5.1.70

CPU:

Intel XScale PXA270

CPU-Clock:

520MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

128MB, including 44MB user-accessible non-volatile memory

RAM-type:

SDRAM, 133MHz

RAM-capacity:

64MB (accessible: 49MB)

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

640 x 480 (307200 pixel)

Diagonal:

3.6` (91.5 millimetres)

Viewable-size:

2.9` x 2.2` (73.2 x 54.9 millimetres)

Dot-Pitch:

0.1144 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

2 (stereo)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz, UMTS 2100MHz

Supported-Data-Standards:

CSD, GPRS, UMTS

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.24Mbit/s (FIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

QWERTY keyboard, 62 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1620mAh

Avarege-Current:

180 mA

Estimated-Battery-Life:

9 hours

Additional-Features:

HTC PU10A rotatable screen GPRS Class 10 40 tone polyphonic (MIDI) ringtone stereo speaker hands-free voice command built-in antenna GSM and UMTS external antenna connector vibrating call alert backlit keyboard with backlight auto sensor mini-USB connecto
