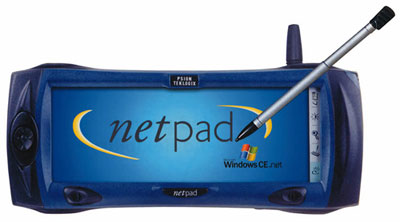

Psion Teklogix netPad

add to favorites

details:

» home » Psion Teklogix » Psion Teklogix netPad

Title:

Psion Teklogix netPad

Brand:

Psion Teklogix

Manufacturer:

Psion Teklogix

Release-Date:

January, 2003

Dimensions-width-x-height-x-depth:

215 x 85 x 35 millimetres
8.5 x 3.3 x 1.4 inches

Bounding-Volume:

639.6 cubecentimetres

Mass:

620 grams (battery included)

Embedded-Operating-System:

Microsoft Windows CE .NET 4.2 Professional Edition (McKendric)

Operating-System-Kernel:

Microsoft Windows CE 4.2

CPU:

Intel StrongARM SA-1110

CPU-Clock:

206MHz

Databus-Width:

32bit

CPU-Core:

Intel SA-1

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

32MB

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 60MB)

Expansion-Slots:

PCMCIA I., PCMCIA II., CF I., CF II., MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

12bit/pixel (4096 scales)

Resolution:

640 x 240 (153600 pixel)

Diagonal:

Viewable-size:

` x ` (0 x 0 millimetres)

Dot-Pitch:

Graphical-Controller:

D-A-converter:

8bit audio sampling, mono

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

Not supported

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

1-chord melody (monophonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.14Mbit/s (FIR)

Bluetooth:

Bluetooth 1.1

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1800mAh

Avarege-Current:

150 mA

Estimated-Battery-Life:

12 hours

Additional-Features:

dust resistant drop resistant (1.5m) water resistant (1m) IP54 standard
