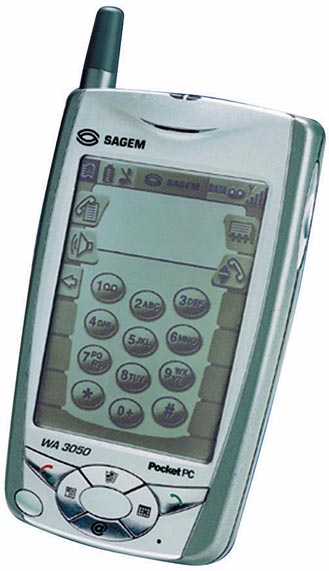

Sagem WA3050

Title:

Sagem WA3050

Brand:

Sagem

Manufacturer:

Sagem

Release-Date:

June, 2002

Dimensions-width-x-height-x-depth:

80.6 x 130.6 x 16.5 millimetres
3.2 x 5.1 x 0.6 inches

Bounding-Volume:

173.7 cubecentimetres

Mass:

198 grams (battery included)

Embedded-Operating-System:

Microsoft Pocket PC 2000 (Rapier)

Operating-System-Kernel:

Microsoft Windows CE 3.0

CPU:

Intel StrongARM SA-1110

CPU-Clock:

206MHz

Databus-Width:

32bit

CPU-Core:

Intel SA-1

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

16MB

RAM-type:

SDRAM

RAM-capacity:

16MB

Expansion-Slots:

CF I.

Display:

backlit monochrome STN

Color-Depth:

4bit/pixel (16 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.9` (99 millimetres)

Viewable-size:

2.3` x 3.1` (59.4 x 79.2 millimetres)

Dot-Pitch:

0.2475 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz

Supported-Data-Standards:

GPRS

Ring:

1-chord melody (monophonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

Not supported

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

Not supported

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

920mAh

Avarege-Current:

46 mA

Estimated-Battery-Life:

20 hours

Additional-Features:

GPRS Class 8
