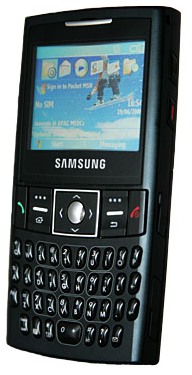

Samsung SGH-i320

add to favorites

details:

» home » Samsung » Samsung SGH-i320

Title:

Samsung SGH-i320

Brand:

Samsung

Manufacturer:

Samsung Electronics

Release-Date:

July, 2006

Dimensions-width-x-height-x-depth:

59 x 111 x 11.5 millimetres
2.3 x 4.4 x 0.5 inches

Bounding-Volume:

75.3 cubecentimetres

Mass:

95 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Smartphone AKU 2.5

Operating-System-Kernel:

Microsoft Windows CE 5.1.195 Build 14967.2.5.0

CPU:

Samsung S3C2442

CPU-Clock:

394MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

160MB, including 122.54MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 52.78MB)

Expansion-Slots:

microSD, TransFlash, SDIO

Display:

color transflective TFT

Color-Depth:

18bit/pixel (262144 scales)

Resolution:

320 x 240 (76800 pixel)

Diagonal:

2.2` (56 millimetres)

Viewable-size:

1.8` x 1.3` (44.8 x 33.6 millimetres)

Dot-Pitch:

0.14 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

2 (stereo)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS, EDGE

Ring:

64-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

QWERTY keyboard, 37 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1000mAh

Avarege-Current:

83 mA

Estimated-Battery-Life:

12 hours

Additional-Features:

GPRS Class 10 64 tone polyphonic (MIDI) ringtone built-in antenna hands-free voice command stereo speaker vibrating call alert flash Bluetooth stereo audio profile (A2DP) pre installed AKU 2.5 (Messaging & Security Feature Pack) spare battery in the packe
