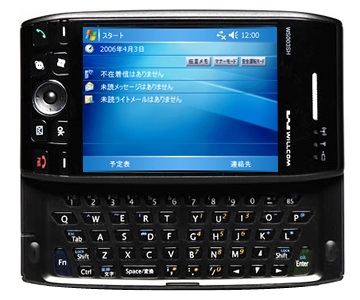

Sharp W-ZERO3 WS003SH

add to favorites

details:

» home » Sharp » Sharp W-ZERO3 WS003SH

Title:

Sharp W-ZERO3 WS003SH

Brand:

Sharp

Manufacturer:

Sharp

Release-Date:

February, 2006

Dimensions-width-x-height-x-depth:

69 x 130 x 26 millimetres
2.7 x 5.1 x 1 inches

Bounding-Volume:

233.2 cubecentimetres

Mass:

218 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Premium Edition (Magneto)

Operating-System-Kernel:

Microsoft Windows CE 5.1.70

CPU:

Intel XScale PXA270

CPU-Clock:

416MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

128MB, including 60MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

miniSD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

480 x 640 (307200 pixel)

Diagonal:

3.7` (94 millimetres)

Viewable-size:

2.2` x 3` (56.4 x 75.2 millimetres)

Dot-Pitch:

0.1175 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

PHS

Supported-Data-Standards:

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 host/client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 2.0

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

QWERTY keyboard, 54 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1400mAh

Avarege-Current:

127 mA

Estimated-Battery-Life:

11 hours

Additional-Features:

polyphonic (MIDI) ringtone voice command built-in antenna hands-free vibrating call alert slide-out QWERTY keyboard mini-USB connector
