Symbol MC3070 Color

add to favorites

details:

» home » Symbol » Symbol MC3070 Color

Title:

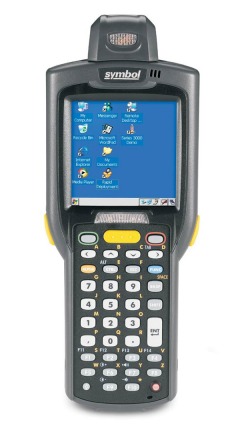

Symbol MC3070 Color

Brand:

Symbol

Manufacturer:

Symbol Technologies

Release-Date:

January, 2005

Dimensions-width-x-height-x-depth:

80.8 x 188 x 44.7 millimetres
3.2 x 7.4 x 1.8 inches

Bounding-Volume:

679 cubecentimetres

Mass:

428 grams (battery included)

Embedded-Operating-System:

Microsoft Windows CE .NET 4.2 Professional Edition (McKendric)

Operating-System-Kernel:

Microsoft Windows CE 4.2

CPU:

Intel XScale PXA270

CPU-Clock:

520MHz

Databus-Width:

32bit

CPU-Core:

Intel XScale

Number-of-Transistors:

Level-1-cache:

32KB data cache / 32KB instruction cache

Instruction-set:

ARM v5TE

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

320 x 320 (102400 pixel)

Diagonal:

3.9` (100 millimetres)

Viewable-size:

2.8` x 2.8` (70.71 x 70.71 millimetres)

Dot-Pitch:

0.221 millimetre/pixel

Graphical-Controller:

D-A-converter:

mono

Audio-Input:

Number-of-speakers:

1 (mono)

Audio-Output:

Not supported

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 host/client, 12Mbit/sProprietary connector

Infrared-Gate:

Not supported

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

802.11b, 802.11g54Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

alphanumeric phone keyboard, 28 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

2600mAh

Avarege-Current:

130 mA

Estimated-Battery-Life:

20 hours

Additional-Features:

dust resistant drop resistant (1.2m) water resistant (IP54) integrated bar code scanner
