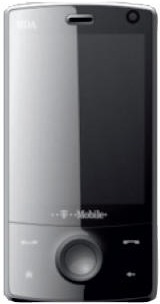

T-Mobile MDA Compact IV (HTC Diamond)

add to favorites

details:

» home » T-Mobile » T-Mobile MDA Compact IV (HTC Diamond)

Title:

T-Mobile MDA Compact IV (HTC Diamond)

Brand:

Manufacturer:

Release-Date:

June, 2008

Dimensions-width-x-height-x-depth:

51 x 102 x 11.33 millimetres

Bounding-Volume:

Mass:

110 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 6.1 Professional

Operating-System-Kernel:

CPU:

32bit Qualcomm MSM7201A

CPU-Clock:

528 MHz

Databus-Width:

CPU-Core:

Number-of-Transistors:

Level-1-cache:

Instruction-set:

ROM-capacity:

4352 MB

RAM-type:

RAM-capacity:

192 MB

Expansion-Slots:

Not supported

Display:

color transflective TFT , 65536 scales

Color-Depth:

Resolution:

480 x 640

Diagonal:

2.8 `

Viewable-size:

Dot-Pitch:

Graphical-Controller:

D-A-converter:

Audio-Input:

mono

Number-of-speakers:

mono

Audio-Output:

Proprietary plug

Supported-Cellular-Networks:

GSM900, GSM1800, GSM1900, UMTS900, UMTS2100

Supported-Data-Standards:

CSD, GPRS, EDGE, UMTS, HSDPA, HSUPA

Ring:

UART:

Universal-Serial-Bus:

USB 2.0 client, Hi-Speed (480Mbit/s) USB Series Mini-B (mini-USB) connector

Infrared-Gate:

Not supported

Bluetooth:

Bluetooth 2.0 + EDR

LAN:

Wireless-LAN:

802.11b, 802.11g

Modem:

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Directional-Pad:

5 -way block

Battery:

Lithium-ion , removable

Battery-Capacity:

900 mAh

Avarege-Current:

Estimated-Battery-Life:

Additional-Features:

Related-Page:

views:

5415

date added:

May 09, 2008

Click here to Download the T-Mobile MDA Compact IV (HTC Diamond) image

Rate it (NOT RATED)

Read Comments (0)

Add Comments
