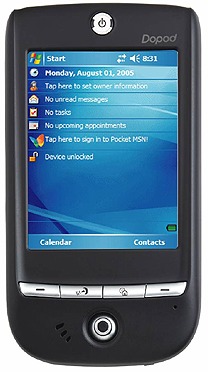

Dopod P100 (HTC Galaxy)

add to favorites

details:

» home » Dopod » Dopod P100 (HTC Galaxy)

Title:

Dopod P100 (HTC Galaxy)

Brand:

Dopod

Manufacturer:

High Tech Computer

Release-Date:

December, 2005

Dimensions-width-x-height-x-depth:

59.4 x 109.7 x 17.6 millimetres
2.3 x 4.3 x 0.7 inches

Bounding-Volume:

114.7 cubecentimetres

Mass:

126 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Pocket PC Premium Edition (Magneto)

Operating-System-Kernel:

Microsoft Windows CE 5.1.70

CPU:

Samsung S3C2440

CPU-Clock:

300MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

128MB, including 97MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB (accessible: 48MB)

Expansion-Slots:

MMC, SD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.8` (72 millimetres)

Viewable-size:

1.7` x 2.3` (43.2 x 57.6 millimetres)

Dot-Pitch:

0.18 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

3.5mm, stereo

Supported-Cellular-Networks:

Supported-Data-Standards:

Ring:

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

802.11b11Mbit/s

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion, removable

Battery-Capacity:

1130mAh

Avarege-Current:

141 mA

Estimated-Battery-Life:

8 hours

Additional-Features:

built-in 12 -channel SiRF Star III GPS reciever mini-USB connector

Related-Page:

http://www.dopod.com.tw...

views:

5006

date added:

Dec 06, 2006
