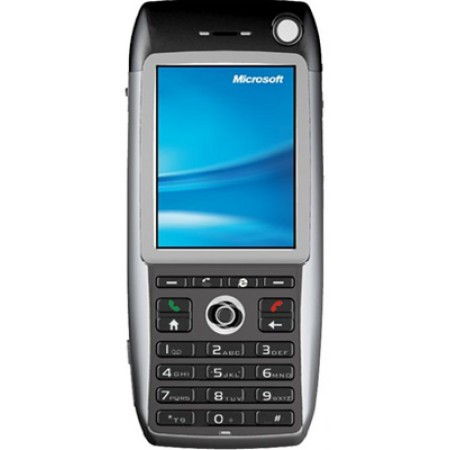

Qtek 8600 (HTC Breeze 100)

add to favorites

details:

» home » Qtek » Qtek 8600 (HTC Breeze 100)

Title:

Qtek 8600 (HTC Breeze 100)

Brand:

Qtek

Manufacturer:

High Tech Computer

Release-Date:

August, 2006

Dimensions-width-x-height-x-depth:

49 x 112.4 x 14.8 millimetres
1.9 x 4.4 x 0.6 inches

Bounding-Volume:

81.5 cubecentimetres

Mass:

115 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 5.0 for Smartphone

Operating-System-Kernel:

Microsoft Windows CE 5.1.195

CPU:

Samsung S3C2442

CPU-Clock:

300MHz

Databus-Width:

32bit

CPU-Core:

ARM920T

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

128MB, including 60.54MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

microSD, TransFlash, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.2` (56 millimetres)

Viewable-size:

1.3` x 1.8` (33.6 x 44.8 millimetres)

Dot-Pitch:

0.14 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz, UMTS 2100MHz

Supported-Data-Standards:

CSD, GPRS, EDGE, UMTS

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.2

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

alphanumeric phone keyboard, 12 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1050mAh

Avarege-Current:

70 mA

Estimated-Battery-Life:

15 hours

Additional-Features:

GPRS Class 10 64 tone polyphonic (MIDI) ringtone secondary CIF (352x288) camera a videótelefonhoz hands-free built-in antenna vibrating call alert mini-USB connector

Related-Page:

http://www.qtek.fi/qtek8600.htm...
