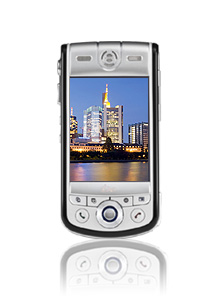

iDO S600

add to favorites

details:

» home » iDO » iDO S600

Title:

iDO S600

Brand:

iDO

Manufacturer:

Release-Date:

December, 2005

Dimensions-width-x-height-x-depth:

55 x 109 x 21.5 millimetres
2.2 x 4.3 x 0.8 inches

Bounding-Volume:

128.9 cubecentimetres

Mass:

145 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 Second Edition for Pocket PC Phone Edition (Ozone Update)

Operating-System-Kernel:

Microsoft Windows CE 4.21.1088

CPU:

Freescale i.MX21 (MC9328MX21)

CPU-Clock:

266MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

16KB data cache / 16KB instruction cache

Instruction-set:

ARM v5TEJ

ROM-capacity:

128MB, including 88MB user-accessible non-volatile memory

RAM-type:

SDRAM

RAM-capacity:

64MB

Expansion-Slots:

miniSD, SDIO

Display:

color transflective TFT

Color-Depth:

18bit/pixel (262144 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

2.8` (72 millimetres)

Viewable-size:

1.7` x 2.3` (43.2 x 57.6 millimetres)

Dot-Pitch:

0.18 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

40-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.1

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1300mAh

Avarege-Current:

130 mA

Estimated-Battery-Life:

10 hours

Additional-Features:

GPRS Class 10 40 tone polyphonic (MIDI) ringtone hands-free built-in antenna vibrating call alert flash
