Title:

O2 Xphone II (HTC Feeler)

Brand:

Manufacturer:

High Tech Computer

Release-Date:

December, 2004

Dimensions-width-x-height-x-depth:

44.5 x 107.5 x 18 millimetres
1.8 x 4.2 x 0.7 inches

Bounding-Volume:

86.1 cubecentimetres

Mass:

102 grams (battery included)

Embedded-Operating-System:

Microsoft Windows Mobile 2003 Second Edition for Smartphone

Operating-System-Kernel:

Microsoft Windows CE 4.21

CPU:

Texas Instruments OMAP 730

CPU-Clock:

200MHz

Databus-Width:

32bit

CPU-Core:

ARM926EJ-S

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v5

ROM-capacity:

64MB

RAM-type:

SDRAM

RAM-capacity:

32MB

Expansion-Slots:

miniSD, SDIO

Display:

color transflective TFT

Color-Depth:

16bit/pixel (65536 scales)

Resolution:

176 x 220 (38720 pixel)

Diagonal:

2.2` (57 millimetres)

Viewable-size:

1.4` x 1.8` (35.61 x 44.51 millimetres)

Dot-Pitch:

0.2023 millimetre/pixel

Graphical-Controller:

D-A-converter:

16bit audio sampling, stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz, GSM 1900MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

32-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.1 client, 12Mbit/sUSB Series Mini-B (mini-USB) connector

Infrared-Gate:

IrDA 1.2115200bit/s (SIR/CIR)

Bluetooth:

Bluetooth 1.1

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Not supported

Keyboard:

alphanumeric phone keyboard, 12 keys

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, removable

Battery-Capacity:

1050mAh

Avarege-Current:

70 mA

Estimated-Battery-Life:

15 hours

Additional-Features:

GPRS Class 10 32 tone polyphonic (MIDI) ringtone hands-free built-in antenna vibrating call alert mini-USB connector

views:

4913

date added:

Dec 06, 2006

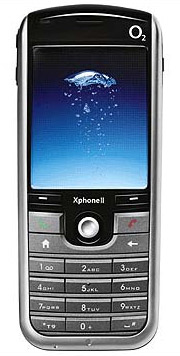

Click here to Download the O2 Xphone II (HTC Feeler) image
