Title:

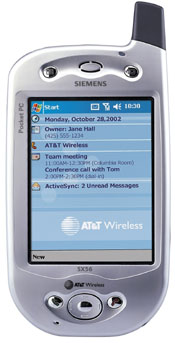

Siemens SX56 (HTC Wallaby)

Brand:

Siemens

Manufacturer:

High Tech Computer

Release-Date:

October, 2002

Dimensions-width-x-height-x-depth:

73 x 129 x 18 millimetres
2.9 x 5.1 x 0.7 inches

Bounding-Volume:

169.5 cubecentimetres

Mass:

201 grams (battery included)

Embedded-Operating-System:

Microsoft Pocket PC 2002 Phone Edition (Merlin)

Operating-System-Kernel:

Microsoft Windows CE 3.01

CPU:

Intel StrongARM SA-1110

CPU-Clock:

206MHz

Databus-Width:

32bit

CPU-Core:

Intel SA-1

Number-of-Transistors:

Level-1-cache:

8KB data cache / 16KB instruction cache

Instruction-set:

ARM v4

ROM-capacity:

32MB

RAM-type:

SDRAM

RAM-capacity:

32MB

Expansion-Slots:

MMC, SD

Display:

color reflective TFT

Color-Depth:

12bit/pixel (4096 scales)

Resolution:

240 x 320 (76800 pixel)

Diagonal:

3.5` (89 millimetres)

Viewable-size:

2.1` x 2.8` (53.4 x 71.2 millimetres)

Dot-Pitch:

0.2225 millimetre/pixel

Graphical-Controller:

D-A-converter:

stereo

Audio-Input:

mono microphone

Number-of-speakers:

1 (mono)

Audio-Output:

2.5mm, stereo

Supported-Cellular-Networks:

GSM 900MHz, GSM 1800MHz

Supported-Data-Standards:

CSD, GPRS

Ring:

24-chord melody (polyphonic)

UART:

RS-232, 115200bit/s

Universal-Serial-Bus:

USB 1.0 client, 12Mbit/sProprietary connector

Infrared-Gate:

IrDA 1.1115200bit/s (SIR/CIR)

Bluetooth:

Not supported

LAN:

Not supported

Wireless-LAN:

Not supported

Modem:

Not supported

Control-Peripherals:

Positioning-Device:

Touchscreen

Keyboard:

Not supported

Directional-Pad:

5-way directional block

Battery:

Lithium-ion polymer, built-in

Battery-Capacity:

1500mAh

Avarege-Current:

167 mA

Estimated-Battery-Life:

9 hours

Additional-Features:

GPRS Class 8 vibrating call alert
